Station interview. Radios, antennas and equipment.Hamshack corner - Our

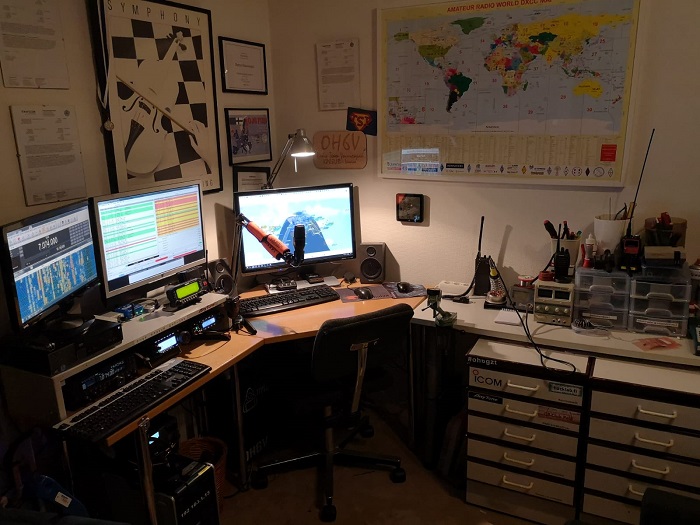

hamshack is located in back corner of our livingroom. (Old image)
Radios
HF: Yaesu FT450AT, Yaesu
FT450D, Yaesu FT891, Icom IC-735 + National NCX 5 line (NCX
5 not in use).
VHF/uhf: Kenwood TM-D710, Yaesu FTM-400DXE, Yaesu FT-790RII (70cm).
PSU: PSU-1228.DIG 13.8V / 28A & MSE MS-1228 13.8V / 28A, Icom PS-20 20A+.
Tuners: CG-Antennas CG-3000 wire tuner (@ antenna feedpoint).
Digimode interfaces: Home-made interfaces with galvanic isolating and CAT-control etc. for HF-radios.
Other HF: CX201 & CX401 antenna switchs, Comet CF-50MR 56MHz LPF,
Radioworks T4-plus and T4-500 RF-chokes. Heil Pro-set Micro for HF SSB, TE-systems 4410G 100W 70cm linear.
Receivers: Few RTL-SDR USB-sticks (generation 1 and 3).
APRS: Comarco Systems MDR150 5W RTX Dataradio, Microsat WX3in1.
DMR: SharkRF Openspot (legacy) + Anytone AT-D878UV with power adapter and speaker-microphone.
Radio PC: Dell 7010 Corei5 3.1GHz, 16GB ram, SSD etc. Dedicated for radio use with 2 monitors. Lenovo X201 laptop.
Radio Sever: oh6v.fi, Dell Optiplex 380 SFF, Intel C2Q 4-core 2.4GHz, 8GB Ram DDR3, 128GB SSD + 500GB HDD
VHF/uhf: Kenwood TM-D710, Yaesu FTM-400DXE, Yaesu FT-790RII (70cm).
PSU: PSU-1228.DIG 13.8V / 28A & MSE MS-1228 13.8V / 28A, Icom PS-20 20A+.
Tuners: CG-Antennas CG-3000 wire tuner (@ antenna feedpoint).
Digimode interfaces: Home-made interfaces with galvanic isolating and CAT-control etc. for HF-radios.
Other HF: CX201 & CX401 antenna switchs, Comet CF-50MR 56MHz LPF,
Radioworks T4-plus and T4-500 RF-chokes. Heil Pro-set Micro for HF SSB, TE-systems 4410G 100W 70cm linear.
Receivers: Few RTL-SDR USB-sticks (generation 1 and 3).
APRS: Comarco Systems MDR150 5W RTX Dataradio, Microsat WX3in1.
DMR: SharkRF Openspot (legacy) + Anytone AT-D878UV with power adapter and speaker-microphone.
Radio PC: Dell 7010 Corei5 3.1GHz, 16GB ram, SSD etc. Dedicated for radio use with 2 monitors. Lenovo X201 laptop.
Radio Sever: oh6v.fi, Dell Optiplex 380 SFF, Intel C2Q 4-core 2.4GHz, 8GB Ram DDR3, 128GB SSD + 500GB HDD
Radiodesk - the main operating look.
(17.5.2020)
Static installed Anytone at-d878uv with Kenwood KMC-45D speakermic for DMR-QSOs and some portables behind..
Static installed Anytone at-d878uv with Kenwood KMC-45D speakermic for DMR-QSOs and some portables behind..
Antennas
HF.
40m Inverted-L wire - 10m vertical and 30m horisontal with feed-point tuner CG-3000. Tunable to 160-10m HF-bands.
Vertical section is attached in Spiderbeam Spiderpole and there is a Radioworks T4+ choke below tuner.
Radial network contains 30pcs of different lenght of 0,75mm wires buried under lawn, total lengt over 150m.
Flowerpot vertical coax-dipole for 10m
VHF / UHF + 1090MHz.
Sirio SD-1300N Discone 25-1300MHz for RX and 2m/70cm Repeater use.
Aerial AV1312 2m Dipole (APRS), Diamond V-2000 VHF/UHF+6m
Left corner: 10m Vertical dipole and 40m Inverted-L
40m Inverted-L "feedpoint" - CG-3000 tuner and Radioworks T4+ choke
Low-pass filter and chokes inside below radiodesk..
HF.
40m Inverted-L wire - 10m vertical and 30m horisontal with feed-point tuner CG-3000. Tunable to 160-10m HF-bands.
Vertical section is attached in Spiderbeam Spiderpole and there is a Radioworks T4+ choke below tuner.
Radial network contains 30pcs of different lenght of 0,75mm wires buried under lawn, total lengt over 150m.
Flowerpot vertical coax-dipole for 10m
VHF / UHF + 1090MHz.
Sirio SD-1300N Discone 25-1300MHz for RX and 2m/70cm Repeater use.
Aerial AV1312 2m Dipole (APRS), Diamond V-2000 VHF/UHF+6m
Left corner: 10m Vertical dipole and 40m Inverted-L
40m Inverted-L "feedpoint" - CG-3000 tuner and Radioworks T4+ choke
Low-pass filter and chokes inside below radiodesk..
Mobile Shack
We are also often on-air from /mobile with HF- and V-UHF equipments.
Radios:
HF: Yaesu FT891 for HF.
VHF / UHF: Kenwood TM-D-710A 2m/70cm FM+APRS TRX (aprs SSID OH6PV-9)
Antennas: HF: 80m Diamond HF-80CL, 20m Diamond HF80FX, 2m/70cm Diamond NR-770.
There is still some space to install few more?. All antennas installed with fixed UHF-mounts.
We are also often on-air from /mobile with HF- and V-UHF equipments.
Radios:
HF: Yaesu FT891 for HF.
VHF / UHF: Kenwood TM-D-710A 2m/70cm FM+APRS TRX (aprs SSID OH6PV-9)
Antennas: HF: 80m Diamond HF-80CL, 20m Diamond HF80FX, 2m/70cm Diamond NR-770.
There is still some space to install few more?. All antennas installed with fixed UHF-mounts.
